110kV Hamamatsu Microfocus X-ray Source

First starting from the founding of Tokai Electronics Laboratory in 1948, Hamamatsu TV Co., Ltd. was then established in 1953 followed by a company name change to Hamamatsu Photonics K.K. in 1983. All through this period and up to the present day, we here at Hamamatsu Photonics have been continually pursuing technologies involving “light” in all its aspects.

Microfocus X-ray sources specifically developed for 2D and 3D nondestructive testing. A small focal point prevents blurring of x-ray images and delivers a sharp, enlarged image.

1. Applications

  • Non-destructive Inspection

  • X-ray CT

  • In-line X-ray Inspection

2. Applicable Objects

  • Electronic component

  • Printed circuit board

  • Plastic component

  • Metal component

  • Food

  • Beverage

  • Medicine & drug

  • Bioproduct

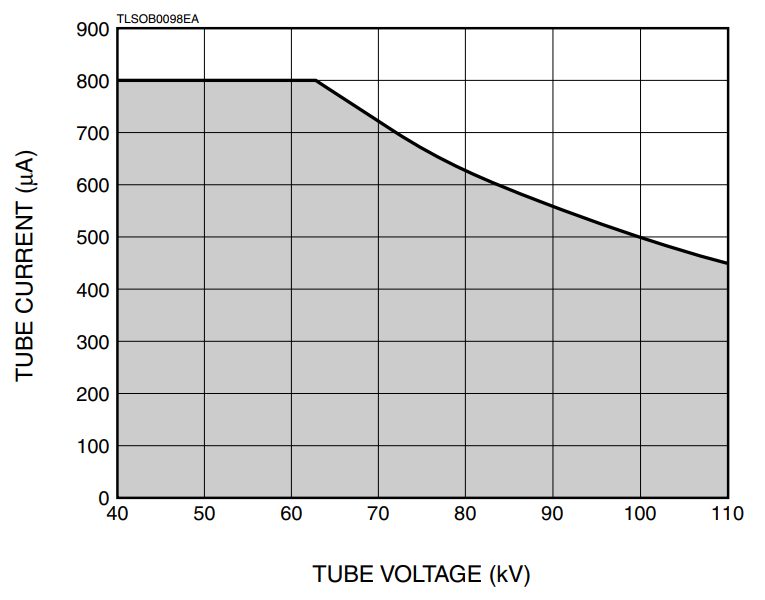

3. Tube Current Operational Range

110kV X-ray Tube Current Operational Range

110kV X-ray Tube Current Operational Range

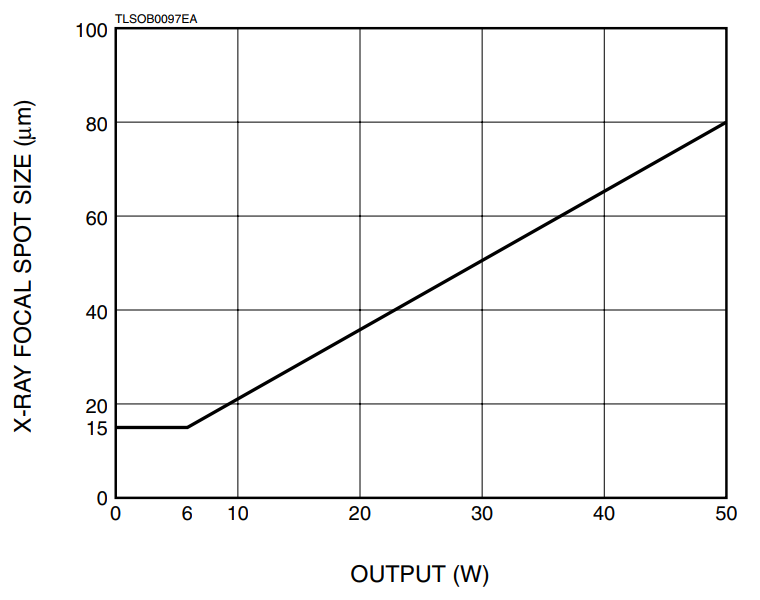

4. X-ray Focal Spot Size vs. Output

110kV X-ray Tube X-ray Focal Spot Size vs. Output

110kV X-ray Tube X-ray Focal Spot Size vs. Output

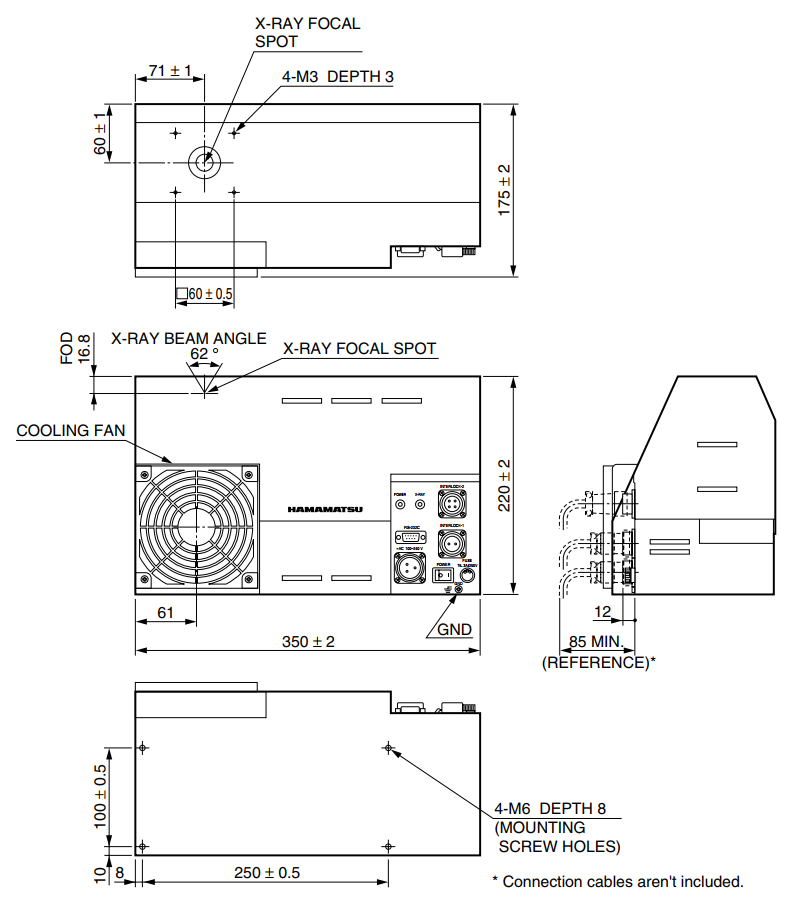

5. Dimensional Outline

110kV X-ray Tube Dimensional Outline

110kV X-ray Tube Dimensional Outline

1. High Output: 800μA (50W)
It allows continuous maximum output.

2. High Stability

3. Easy Handling
Fully operable from an external PC.

4. Serial Port Control
One package of a sealed type X-ray tube, a high-voltage power supply and a control function.

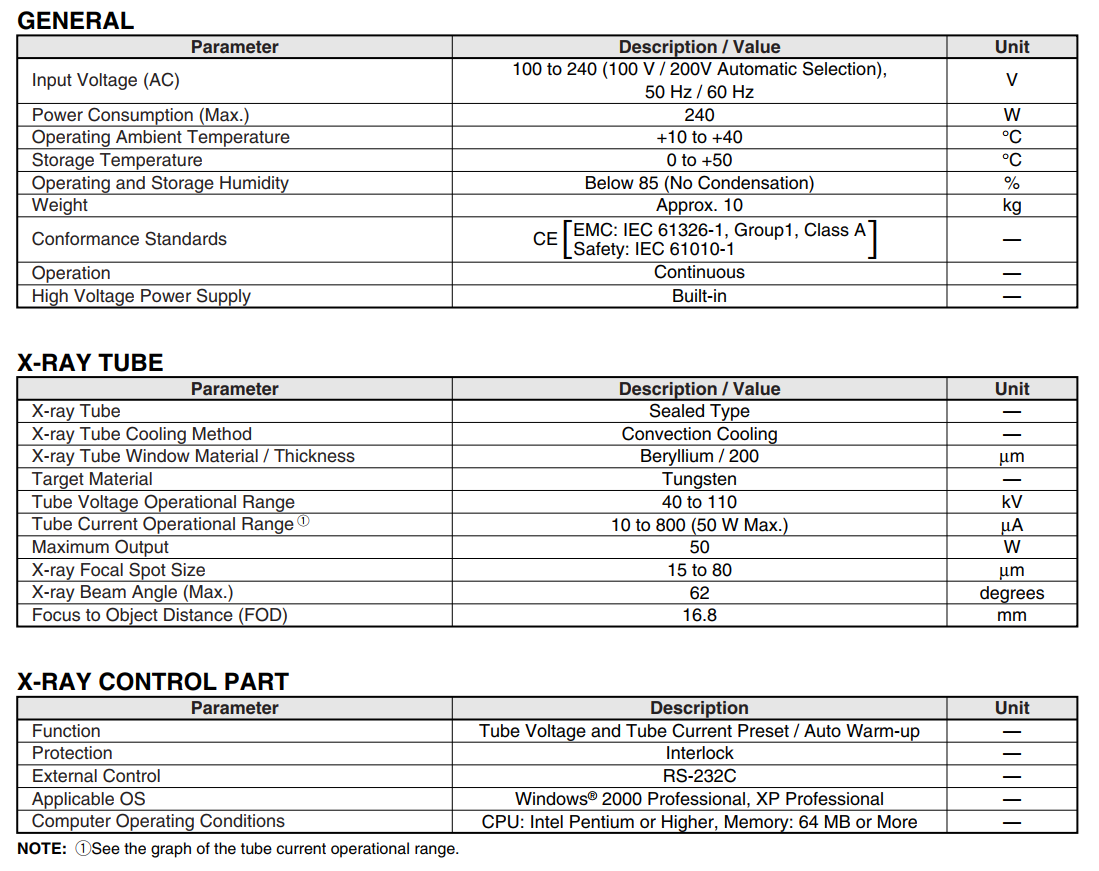

110kV tube parameters

110kV tube parameters
